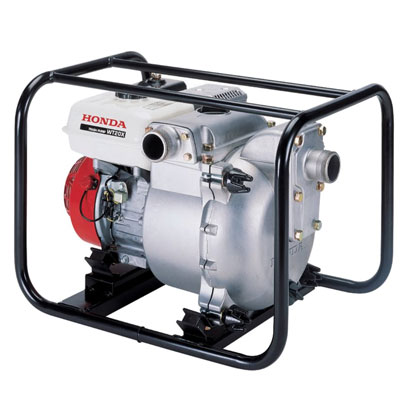

HONDA WT20 |
|
2 inch pump
Powered by the legendary 5.5 Hp Honda Industrial engine this new Trash Pump offers a unique Conical impeller for exceptional priming and pumping performance. Features include, easy maintenance wear plate, wear resistant seal, easy impeller removal and standard tool for pump maintenance, light weight aluminum pump housing, isolation engine mounting, standard suction hose strainer, full frame and oil alert.
|
|
|
- Honda Overhead Valve Engine
- Oil Alert®
- Full Frame
- 2" Suction and Discharge Ports
- 187 Gallons/Minute Discharge Capacity
- Pumps Solids up to 13/16" in Diameter
- 2 Year Residential Warranty
- 2 Year Commercial Engine & 3 Month Pump Component Warranty
| Model Number |
WT20XK4A |
| Engine |
GX160 |
| Displacement |
163 cc |
| Bore and Stroke |
2.7" x 1.8" |
| Compression Ratio |
9.0:1 |
| Oil Alert |
Std |
| Pump Type |
Trash Centrifugal, Self-Priming |
| Volute |
Rigid-Mounted Cast Iron w/ Stainless Wear Plate |
| Impeller |
Conical Cast Iron |
| Mechanical Seal (Pump Case / Impeller) |
Silicone Carbide / Silicone Carbide |
| Priming Time |
60 sec. at 16.4 ft. |
| Drive System |
Direct |
| Discharge Capacity |
185 gals./min. |
| Suction Port Diameter |
2" NPT |
| Discharge Port Diameter |
2" NPT |
| Total Head Lift |
85 ft. |
| Suction Head Lift |
26 ft. |
| Maximum Pressure |
37 psi |
| Solids Handling |
13/16" |
| Dimensions |
24.4" x 18.1" x 18.3" |
| Dry Weight |
104 lbs |
| Fuel Capacity |
0.82 gal |
| Run Time @ Max Discharge |
1.5 hr |
| Strainer Part # |
78325-YB8-003 |
| Residential Warranty |
3 years |
| Commerical Warranty |
3 year |
|
 |
|
 |
