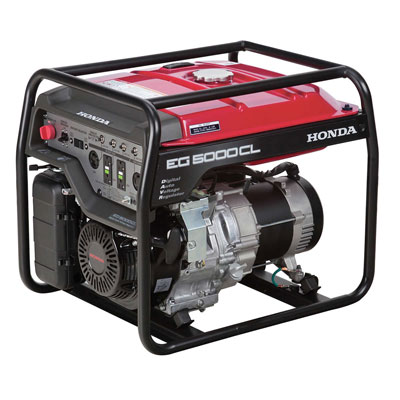

HONDA EG5000
NEW!
  • 5000 watts, 120/240V
  • Economic, portable power
  • Honda commercial OHV engine
  • Honda-exclusive DAVR (Digital Auto Voltage Regulation)
  • Full frame protection
  • Voltage Selector Switch - 120/240V operation

Features & Benefits

Specifications

Accessories

  • 5000 watts (41.2/20.8A) 120/240V Automatic Regulated Power
  • Powerful Honda commercial OHV engine
  • Digital Automatic Voltage Regulator (DAVR) technology for increased performance
  • Operates 11.0 hours @ 50% load (6.3 gal.)
  • Voltage Selector Switch - 120/240V operation
  • Electronic ignition
  • Full frame protection
  • Protected by Oil Alert®
  • USDA-qualifed spark arrestor/muffler
  • 3 year residential and commercial warranty
Engine Honda GX390
Displacement 389 cc
AC Output 120/240V 5000W max. (41.2/20.8A) / 4500W rated (37.5/18.6A)
Receptacles 20A 125V Duplex, 30A 125V Locking Plug, 30A 125/250V Locking Plug
DC Output NA
Starting System Recoil Only
Fuel Tank Capacity 6.3 Gallons
Run Time per Tankful 7.5hrs. @ rated load
11.0hrs. @ 1/2 load
Dimensions (L x W x H) 26.8" x 22.8" x 22.6"
Noise Level 73 dB @ rated load
70 dB(A) @ 50% load
Dry Weight 173 lbs.
Residential Warranty 3 Years
Commercial Warranty 3 Years

Storage Cover

Store and protect your Honda Generator with this convenient, water-repellant cover.

Transfer Switch

The transfer switch isolates the generator, so it can't accidently electrify external power wires. Honda offers a selection of Transfer Switches, including 4, 6, 8, 10 and 12 circuit models. Contact your Honda Power Equipment Dealer for detailed information. This device must be installed by a qualified electrician.

2 Wheel Kit
