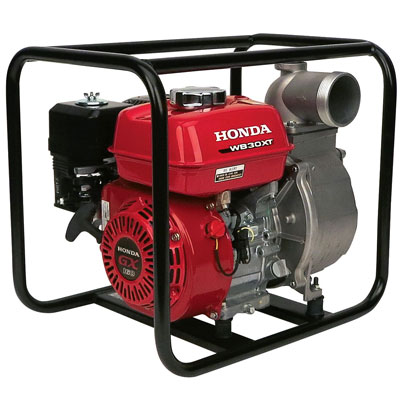

HONDA WB30 |
|
3 inch pump. Powered by Honda's 5.5 HP GX Series OHV premium residential engine with Rigid Mounted Cast Iron Volute and Cast Iron Impeller. For construction, agriculture and rental use, this rugged new pump delivers Honda's renowned premium performance and quality at a reduced price.
|
|
|
- A rigid-mounted cast iron pump volute
- An abrasion-resistant silicone-carbide mechanical deal
- High-performance mounts minimize vibration between engine/pump unit and the frame
PLUS
- Legendary Honda commercial grade OHV engine
- Durable full frame protection
- Heavy-duty cast iron impeller
- Lightweight aluminum pump case
- Non-corrosive drain and fill plugs
- Oil Alert for engine protection
- Meets or exceeds all CARB and EPA 2006 emission regulations
| Model Number |
WB30XT3 |
| Engine |
Honda GX160 |
| Displacement |
163 cc |
| Bore and Stroke |
2.7" x 1.8" |
| Compression Ratio |
9.0:1 |
| Oil Alert |
Std |
| Pump Type |
Contrifugal, Self-Priming |
| Volute |
Rigid-Mounted Cast Iron |
| Impeller |
4 Vane Cast Iron |
| Mechanical Seal (Pump Case / Impeller) |
Silicone Carbide / Silicone Carbide |
| Priming Time |
150 sec @ 16.4 ft. |
| Drive System |
Direct |
| Discharge Capacity |
290 gal/min |
| Suction Port Diameter |
3" NPT |
| Discharge Port Diameter |
3" NPT |
| Total Head Lift |
85 ft. |
| Suction Head Lift |
25 ft. |
| Maximum Pressure |
37 psi |
| Solids Handling |
N/A |
| Dimensions |
20.1" x 15.2" x 17.9" |
| Dry Weight |
57 lb. |
| Fuel Capacity |
0.82 gal |
| Run Time @ Max Discharge |
1.9 hr |
| Strainer Part Number |
78325-YG4-000 |
| Residential Warranty |
3 years |
| Commerical Warranty |
3 year |
|
 |
|
 |
