Back To Home > Honda Generators > Economy Series

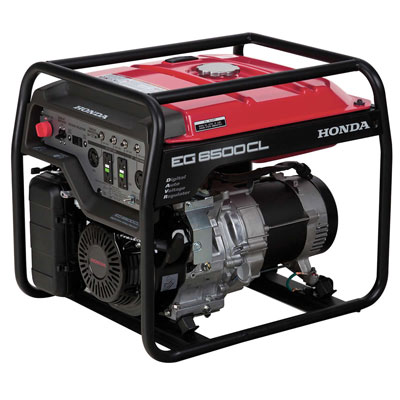

HONDA EG6500
NEW!
  • 6500 watts, 120/240V
  • Economic, portable power
  • Honda commercial OHV engine
  • Honda-exclusive DAVR (Digital Auto Voltage Regulation)
  • Full frame protection
  • Voltage Selector Switch - 120/240V operation

Features & Benefits

Specifications

Accessories

  • 6500 watts (54.2/27.1A) 120/240V Automatic Regulated Power
  • Powerful Honda commercial OHV engine
  • Digital Automatic Voltage Regulator (DAVR) technology for increased performance
  • Operates 10.0 hours @ 50% load (6.3 gal.)
  • Voltage Selector Switch - 120/240V operation
  • Electronic ignition
  • Full frame protection
  • Protected by Oil Alert®
  • USDA-qualifed spark arrestor/muffler
  • 3 year residential and commercial warranty
Model NumberEG6500CLAT1
Engine Honda GX390
Displacement 389 cc
AC Output 120/240V 6500W max. (54.2/27.1A)) / 5500W rated (45.8/22.9A)
Receptacles 20A 125V Duplex (2), 30A 125V Locking Plug, 30A 125/250V Locking Plug
DC Output NA
Starting System Recoil Only
Fuel Tank Capacity 6.3 Gallons
Run Time per Tankful 7.1 hrs. @ rated load
10.0 hrs. @ 1/2 load
Dimensions (L x W x H) 26.8" x 20.9" x 22.5"
Noise Level 72 dB@ rated load
70 dB@ 1/2 load
Dry Weight 179 lbs.
Residential Warranty 3 Years
Commercial Warranty 3 Years

Storage Cover

Store and protect your Honda Generator with this convenient, water-repellant cover.

Transfer Switch

The transfer switch isolates the generator, so it can't accidently electrify external power wires. Honda offers a selection of Transfer Switches, including 4, 6, 8, 10 and 12 circuit models. Contact your Honda Power Equipment Dealer for detailed information. This device must be installed by a qualified electrician.

2 Wheel Kit
